Aqara LED Light Strip T1
Vibe in Every Color.
The Aqara LED Strip T1 is a multipurpose light strip that not only provides high-quality lighting with bright whites, but also can display multiple colors at once and be used in smart home automations with other Aqara or third-party devices.
Key Features:
-
Compatibility and Matter* Support: T1 is compatible with a variety of mainstream ecosystems, providing more ways for users to customize and future-proof their smart homes. When choosing their favorite products, smart home users do not need to worry about different protocols or different platforms. T1 can support Matter through the hub, which will solve most of the problems of interoperability and linkage.
-
16 Million Colors and Tunable Whites: Almost unlimited color options. You can enjoy the brighter white light with a temperature range from cool to hot, or you can get lost in a world of vibrant hues. In the colorful lamp bead mode, you can choose your favorite bright color or create a color-changing scene to achieve the perfect mood.
-
RGBIC** with Gradient Effects: Each of the 10 segments of the strip can be configured separately: it supports different colors, dimming, effects, or even using one strip for different parts of the room.
-
Home Automations and Scenes: Aqara Home App provides rich operations and setting pages. You can choose between a fixed color card combination or a self-selected color. Support for custom scene names, brightness, and the selection of dynamic effects and dynamic speed.
-
Adjustable Length and Easy Installation: It is suitable for DIY projects because it is cuttable*** (into the segments of 20 cm), extendable for up to 10 meters, and reattachable. Furthermore, it has an IP44 rating, meaning it is protected against dust and can also be used outdoors.
-
Zigbee 3.0 with Repeater Functionality: Compared to Wi-Fi competitors, the Strip T1 does not congest your smart home network: In the opposite, it acts as a mesh repeater, and makes your Zigbee network more reliable. Also, it has much lower idle power consumption, which makes it more environmentally- and budget-friendly.
Disclaimers
*A Matter-compatible Aqara hub is required.
**Please note: the RGBIC effects are only available for colorful (RGB) scenes, but not for tunable white.
***After the strip is cut, 5-pin connectors and 5-core wires will be needed to reattach them.
Automations:
-
Circadian lighting using Aqara Home dynamic scenes
If you prefer not using the HomeKit Adaptive Lighting, you can easily configure circadian lighting via Aqara Home dynamic scenes.
IF Sunrise
THEN Trigger the device scene, that will slowly adjust the strip temperature from warm to cold
Devices: LED Strip T1 + Hub
-
Set a dynamic staircase welcome scene!
Thanks to the addressable LED technology, the Strip T1 can be split into the segments, and turn them one by one, which makes it possible to realize the smart stair lighting scenes. For example, the lightstrip will start lighting up each step of the staircase one by one.
IF Presence is detected near the staircase
THEN Turn on the step segments of the strip one by one
Devices: LED Strip T1 + Hub + Presence Sensor FP2
Specifications:
Product Name
|
Aqara LED Strip T1
|
Model
|
RLS-K02D
|
Rated Power
|
5 W/m (30 Pieces × 5050 / 0.2W / RGB, 60 Pieces × 2835 0.2 W)
|
Color Temperature
|
RGB + 2700 K + 6500 K
|
Power Input (Power Supply)
|
100-240V~50/60Hz 1.2A Max
|
Power Output (Power Supply)
|
24V DC 1.5 A
|
Power Input (LED Strip)
|
24VDC ≤0.25A/m
|
Wireless Protocol
|
Zigbee
|
Dimension of the Strip
|
2000 × 12 × 2.8 mm(LED Strip)
|
Working Temperature
|
-10 °C ~ 40 °C (14 °F ~ 104 °F)
|
Operating Humidity
|
0 ~ 95 % RH, no condensation
|
Zigbee Operation Frequency
|
2405-2475 MHz
|
Zigbee Maximum Output Power
|
≤ 13 dBm
|
What is in the Box
|

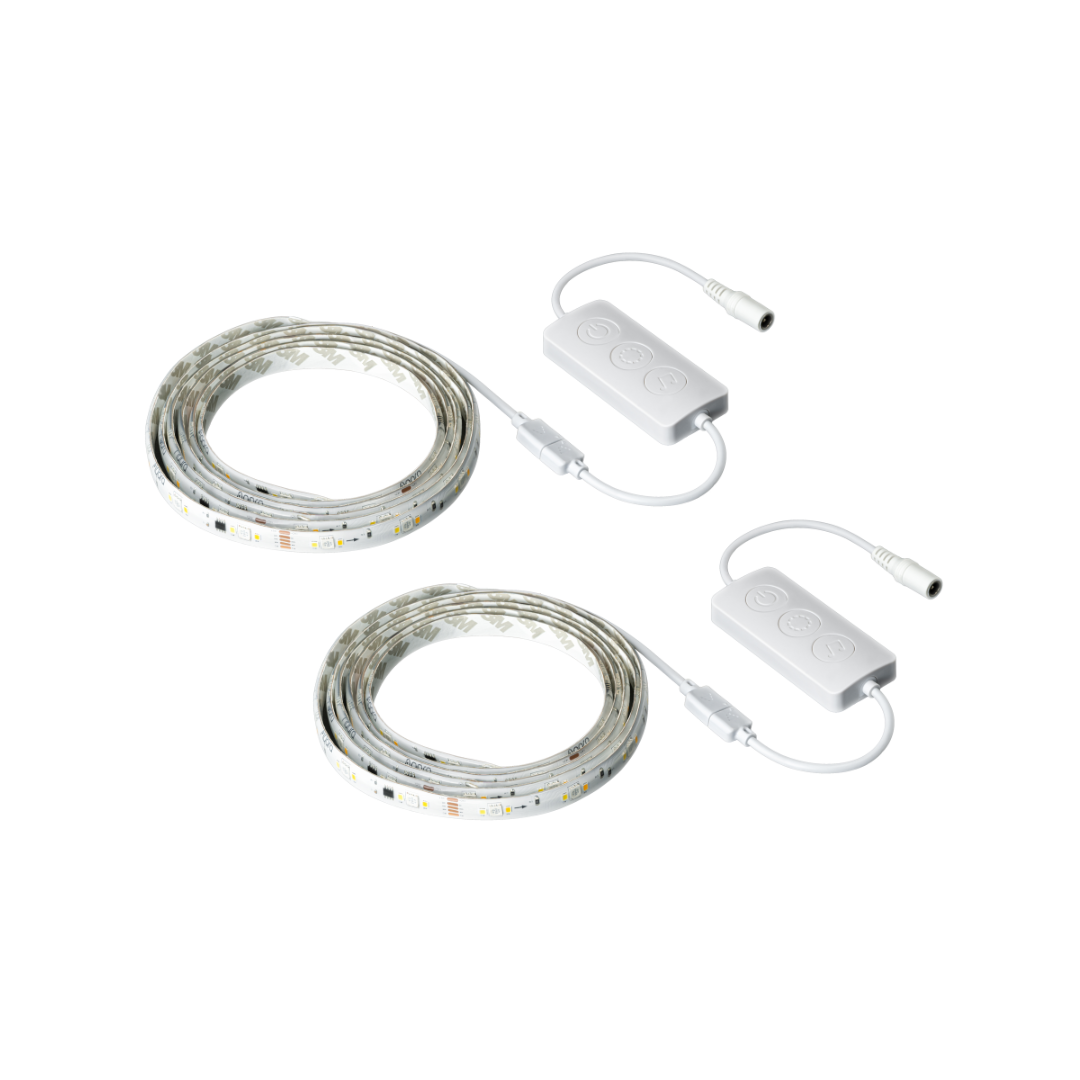

Light Strip (2 m) × 1, Power Adapter × 1, Controller × 1, User Manual × 1
|
