Aqara Smart Security Bundle

Aqara Smart Security Bundle

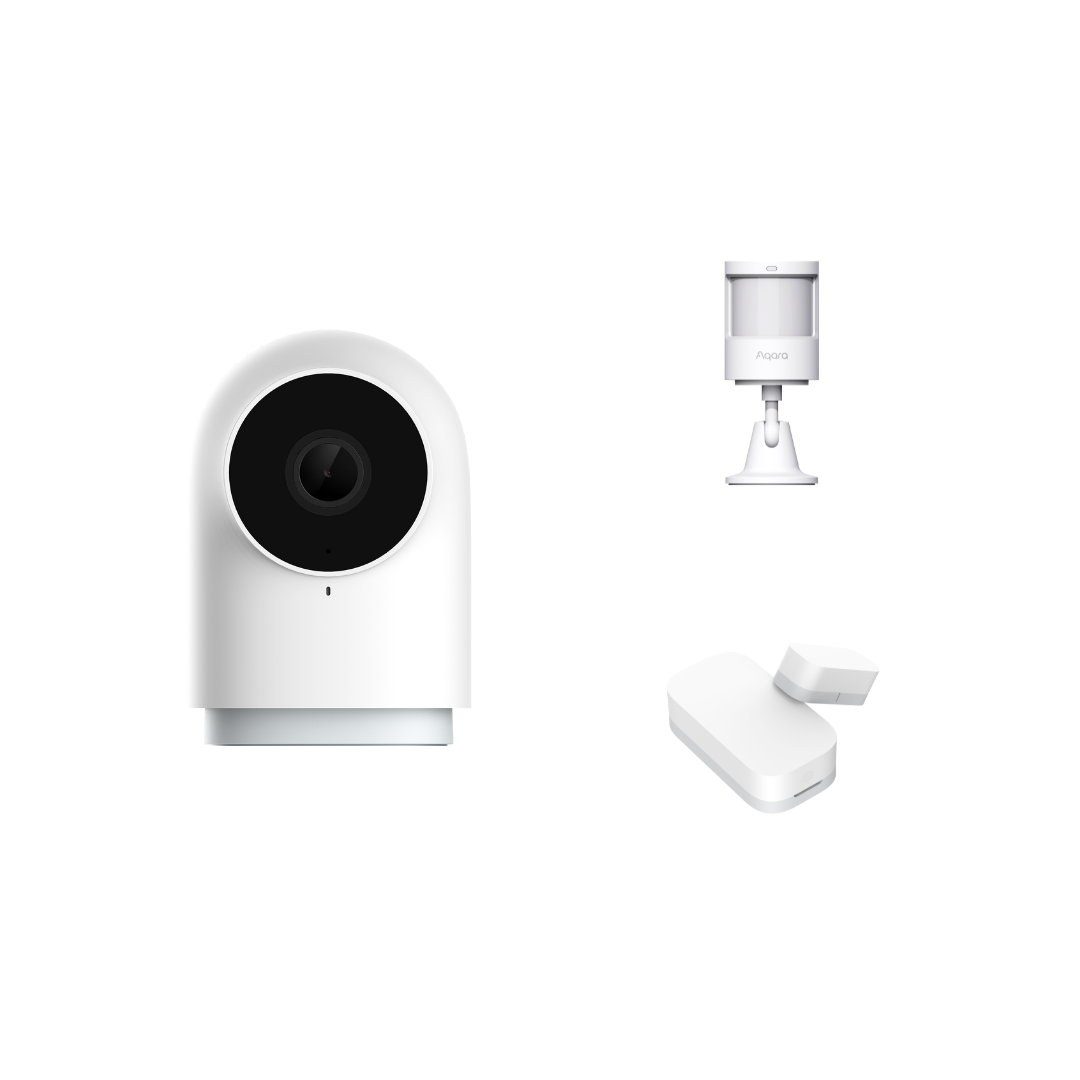

What includes in this bundle:
Aqara Camera Hub G2H Pro * 1
Aqara Door and Window Sensor T1 * 1
Aqara Motion Sensor P1 * 1

Aqara Camera Hub G2H Pro

Aqara Camera Hub G2H Pro is an intelligent product that integrates dual functions of a camera and a hub.  It has functions such as video intercom, motion detection, sound detection, MicroSD card recording, NAS storage, timelapse, privacy area covering and so on. It can also be used as a Zigbee hub in collaboration with other sensors, controllers, and other accessories for functions such as home guard, data reporting, and smart control.  It also supports HomeKit Secure Video.

Specifications:

Product Model: CH-C01

Video Coding: H.264

Resolution: 1080p

Power Supply Input: 5V⎓1A

Viewing Angle: 146° (diagonal)

Overall Power Consumption: 5 W

Product Dimensions: 82.4×56.5×50.5 mm (3.24×2.33×1.99 in.)

Working Temperature: -10°C ~ 40°C (14°F ~ 104°F)

Operating Humidity: 15% ~ 85% RH, no condensation

Wireless Protocols: Zigbee 3.0 IEEE 802.15.4, Wi-Fi IEEE 802.11 b/g/n 2.4 GHz

Local Storage: MicroSD card (CLASS 4 or above is supported, up to 512 GB storage)

Aqara Door and Window Sensor T1

The Aqara Door and Window Sensor T1 detects the open and close state of doors or windows based on the distance between the sensor unit and the magnet. It consumes minimal energy and requires no tools—simply stick it in your desired location for various use cases.

Specifications:

Model: DW-S03D

Battery: CR1632

Wireless Protocol: Zigbee 3.0

Dimensions: 41 × 22 × 11 mm

Maximum Detection Distance: 22 mm

Operating Temperature: -10 °C ~ 45 °C

Operating Humidity: 0 - 95%RH, non-condensing

Supports: Aqara Home, Apple HomeKit

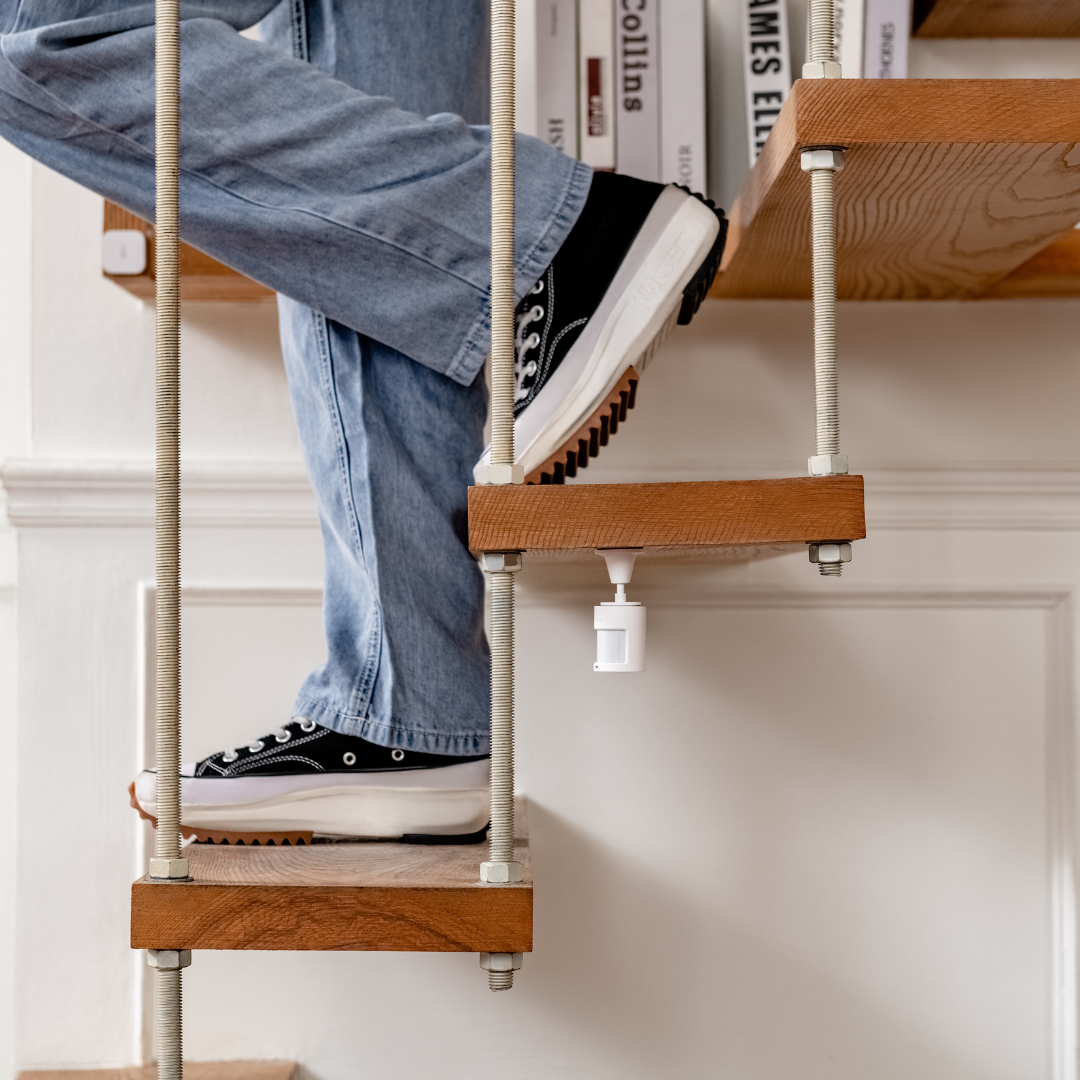

Aqara Motion Sensor P1

Motion Sensor P1 detects body motion and the state of ambient light. If there are any people moving or any change in the ambient light state in the areas under detection, the motion sensor will send notice to the Aqara Home app through the connected Aqara Zigbee 3.0 Hub or link to other devices.

Specifications:

Model: MS-S02

Battery: CR2450

Wireless Protocols: Zigbee 3.0

Dimensions: 33.1×33.1×41.6 mm

Operating Temperature:  -10°C ~ 55°C (14°F ~ 131°F )

Operating Humidity: 0 ~ 95%RH, no condensation

Zigbee Operation Frequency: 2405-2480 MHz

Zigbee Maximum Output Power ≤ 13 dBm
